CS12 Series   Orion CS12 series switches have been designed for compressor applications where an auto -off disconnect lever for manual cut off of the compressor is provided.
A special Unloader valve is provided which prevents the compressor from starting under load.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Ready to use, easy assembly,
• Corrosion remaining unaffected non-metallic case,
• 3-phase connection, that does not require any further circuit and additional relay,
• Manuel stopping facilities,
• OEM production opportunities.

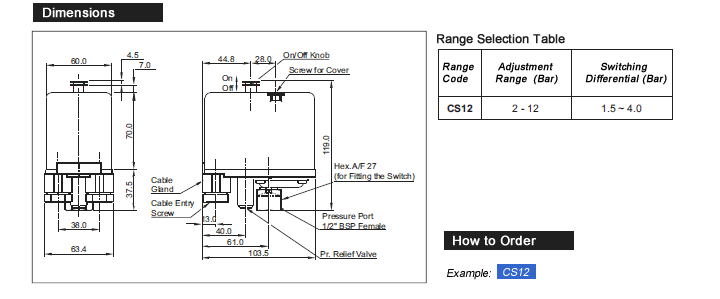

 Range 2 to 12 bar
 Factory setting 6 ~ 8 Bar
 Measurement element Nitrile rubber
 Switch tip OEM
 Switch Max. 16 A / 500 VAC
 Differential type Adjustable
 Protection class IP44
 Body Industrial plastic
 Max.Temperature 80 oC
 Cable input 11.5 & 14.5 mm
 Drain valve 6 mm.
 Pressure connection 1/2" BSP thread
 Pressure connection material Steel
