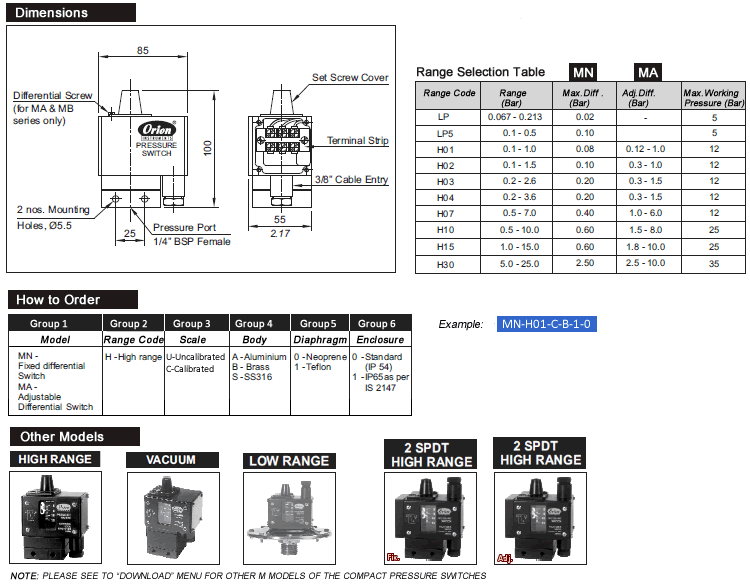

M Series   Orion M Series pressure switches are housed in pressure die cast aluminium powder coated enclosure and are recommended for panel mounting or outdoor service based on the type of enclosure opted for.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Aluminum cast robust case,
• For the Gas and Hydraulic applications,
• Material selection according to the fluid,
• IP65 protection class,
• 1% and 2 % accuracy,
• Easy and safe wiring,
• Wideband adjustment facilities,
• High pressure resistant.





 Range 760 mmHg to 25 bar
 Measurement element Diaphragm; Reinforced plastic, Neoprene, PTFE
 Switch type SPDT Snap action switch, Max.5 A / 250 VAC, 0.2 A, 250 VDC
 Differential type Fix and Adjustable
 Protection class IP54, IP65
 Body Cast aluminum
 Max.Temperature 80 oC
 Cable input 3/8" NPT
 Repeatability 1%, 2% of F.S.
 Pressure connection 1/4" BSP thread
 Pressure connection material Aluminum, Brass, AISI 316 SS
 Mounting Direct or panel mounting, for outside and inside area,
