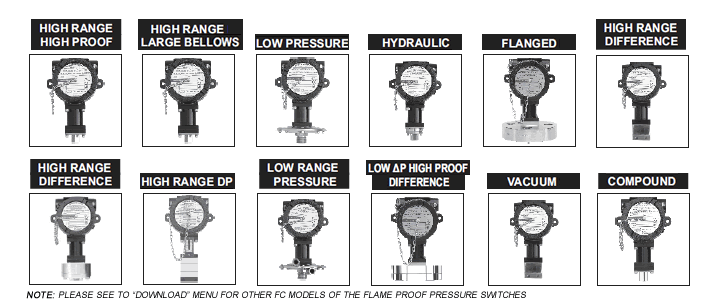

FC Series   Orion FC FC pressure switches have been designed for use in areas which are potentially explosive. These can be used, by selecting an appropriate construction, for gas groups IIA, IIB and IIC. They can also be used in underground mines by selecting Grey CI flameproof heads.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Compact, robust design,
• Flameproof, for IIA,IIB ve IIC gas groups,
• Reliable and sensitive microswitch,
• 1% accuracy,
• Low / High Pressure option possible,
• IP66 protection class,
• Easy and safe wiring,
• Direct or panel mounting, for outside and inside area,
• 2 years warranty,





 Range -760 mmHg to 400 Bar
 Measurement element Diaphragm, Bellow; AISI 316L SS, Teflon, Reinforced plastic, Neoprene
 Switch tip 15 A, 250 VAC, SPDT ve DPDT microswitch
 Differential type Fix or Adjustable
 Protection class IP66, ATEX & IECEx approved
 Body Aluminum or gray cast iron and Stainless steel
 Max.Temperature 80 oC, 150 oC for metallic diaphragm
 Repeatability 1% and 2% of F.S.
 Cable input 1/2" NPT, 3/4" NPT, M20x1.5
 Pressure connection material AISI 316 SS, Hastelloy C, Monel
 Pressure connection 1/4" BSPF, 1/4" NPTF, Flanged connection,
 Mounting Panel or direct; inside and outside area
