MD Series   Orion MD Series Pressure Switches have been designed for applications that require robust, long lasting switches, coupled with high accuracy and repeatability, in adverse conditions. By using appropriate capsules and wetted parts, MD series pressure switches can be used for thousands of applications.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• For the low pressure (1.5 mBar),
• Cast aluminum case,
• Reliable and sensitive microswitch,
• 1% accuracy,
• IP66 protection class,
• Compact, robust design,
• Easy and safe wiring,
• Direct or panel mounting, for outside and inside area,
• 2 years warranty,





 Range 1.5 mBar to 400 bar
 Measurement element Bellow, Piston, Diaphragm; Neoprene, Teflon, Reinforced plastic, AISI 316SS, Monel
 Switch SPDT Snap action switch, Max.15 A / 250 VAC, Max.5 A / 250 VAC, 0.2 A, 250 VDC
 Differential type Fix or Adjustable
 Protection class IP66
 Body Cast aluminum
 Max.Temperature 80 oC, 150 oC for Metal diaphragm
 Cable input 1/2" NPT, 3/4" NPT, M20x1.5 Gland
 Repeatability 1%, 2% of F.S.
 Pressure connection 1/4" BSP thread, 1/4" NPT thread
 Pressure connection material Aluminum, AISI 316 SS
 Mounting Direct or panel mounting, for outside and inside area,

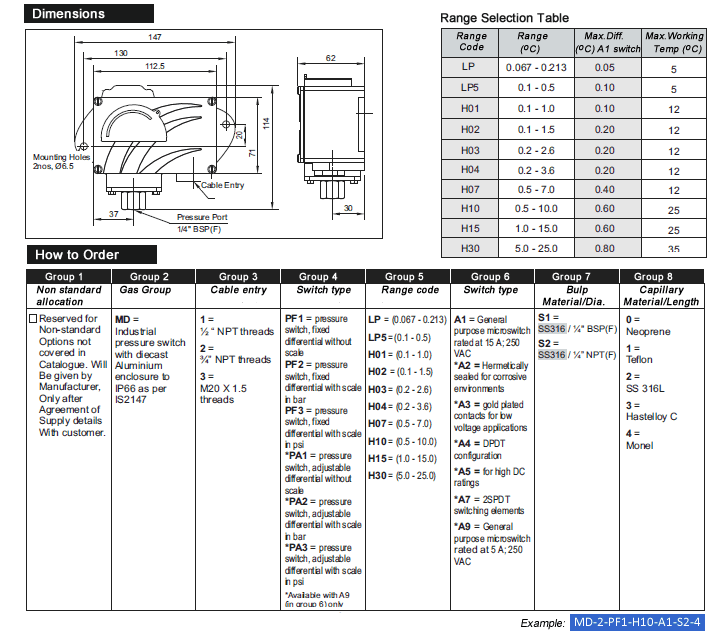

    ORDER CODE
