 Home >>Temperature and Pressure Switches >>Temperature Switches>>MDT Series
MDT Series   Orion MD Series has introduced a new range of temperature switches ideally suited for harsh and corrosive environments often found in many industrial applications. These switches can be mounted remotely with capillary.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Compact, robust design,
• Cast aluminum case,
• Reliable and sensitive microswitch,
• 1% accuracy,
• IP66 protection class,
• With the 2 mt. AISI 316 SS capillary tube,
• Easy and safe wiring,
• Direct or panel mounting, for outside and inside area,
• 2 years warranty.





 Range 25 to 215 oC
 Measurement element Bulp, gas acting,
 Switch tip 15 A, 250 VAC, SPDT ve 0.2 A, 250 VDC microswitch
 Differential type Fix
 Protection class IP66
 Body Cast aluminum
 Ambient temperature -20 oC to 60 oC
 Repeatability 1% of F.S.
 Cable input 1/2" NPT, 3/4" NPT, M20x1.5 Gland
 Bulp-dalma borusu malzemesi Brass; dia. 9.5 mm. immersion length 123 mm.
 Process connection 3/8" BSPM, 3/8" NPTM, 1/2" NPTM
 Capillary tube 2 mt. AISI 316 SS
 Mounting Panel or direct; inside and outside area

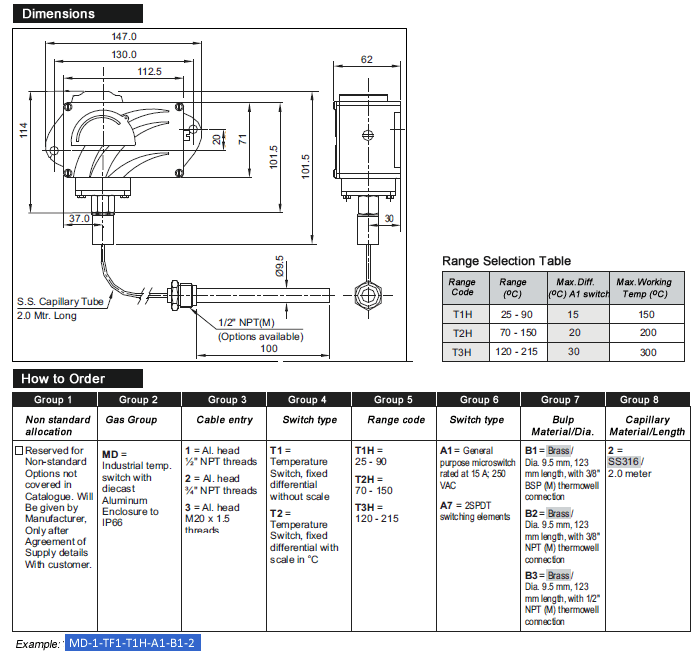

    ORDER CODE


This chapter is for our members use only.

If you are a member click here,
If you are not a member, to register for click here
