VS1 Vacuum   Orion VS1 Series vacuum swicthes are housed in pressure die cast aluminium powder coated enclosure and are recommended for panel mounting or outdoor service.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Ready to use, easy assembly, easy adjustability,
• Suitable material on operating conditions,
• Cast aluminum case, robust,
• 760 mmHg vacuum control,
• IP65 protection class,
• Adjustable in the field.






 Range 760 mmHg to 100 mmHg Vacuum/Pressure
 Measurement element Diaphragm; Neoprene, Teflon, Reinforced plastic
 Switch SPDT Snap action switch, Max. 5 A / 250 VAC, 0.2 A, 250VDC
 Differential type Fix
 Protection class IP54, IP65
 Body Cast aluminum
 Max.Temperature 80 oC
 Cable input 3/8" NPT Gland
 Repeatability 2% of F.S.
 Pressure connection 1/4" BSP thread
 Pressure connection material Aluminum, Brass and AISI 316 SS
 Mounting Direct or panel mounting, for outside and inside area,

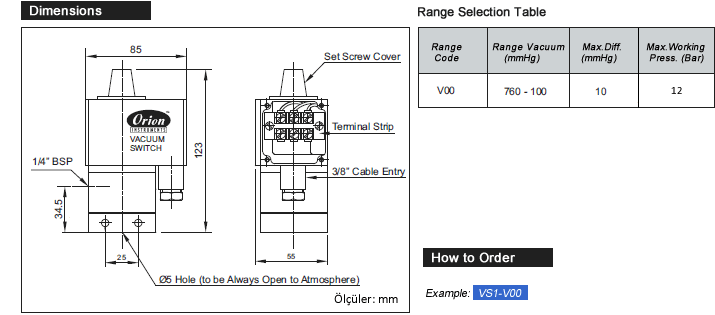

     ORDER CODE



This chapter is for our members use only.

If you are a member click here,
If you are not a member, to register for click here
