 Home >>Temperature and Pressure Switches >>Temperature Switches>>MZT Series
MZT Series   Orion MZT Series Temperature Switches has introduced a new range of temperature switches ideally suited for harsh and corrosive environments often found in many process applications. These switches can be mounted remotely with capillary.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Reasonable price,
• Transparent polycarbonate housing,
• Reliable and sensitive microswitch,
• IP66 protection class,
• Easy and safe wiring,
• Direct or panel mounting, for outside and inside area,,
• OEM production opportunities.





 Range 0.1 Bar to 25 bar
 Measurement element Diaphragm; Neoprene, Teflon, Reinforced plastic
 Switch SPDT Snap action switch, Max.15 A / 250 VAC
 Differential type Fix or Adjustable
 Protection class IP66
 Body Transparent polycarbonate housing
 Max.Temperature 80 oC
 Cable input M20x1.5 Gland
 Repeatability 1%, 2% of F.S.
 Pressure connection 1/4" NPT thread
 Pressure connection material AISI 316 SS
 Mounting Direct or panel mounting, for outside and inside area,

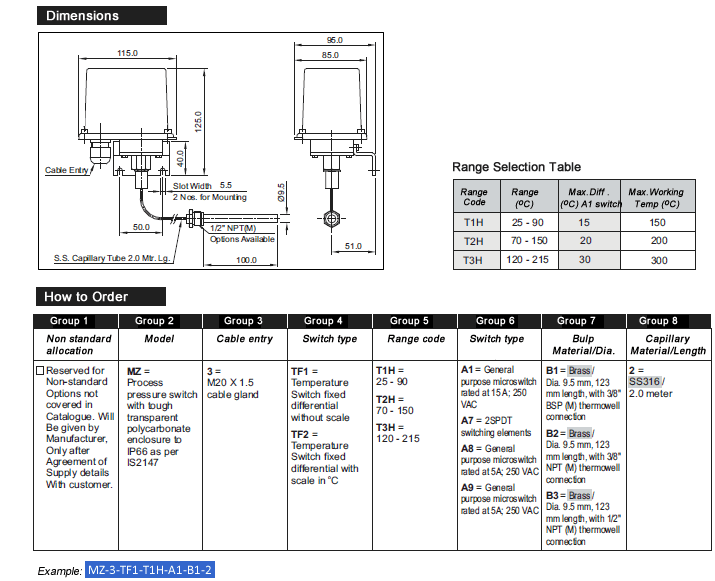

     ORDER CODE

This chapter is for our members use only.

If you are a member click here,
If you are not a member, to register for click here
