 Home >>Temperature and Pressure Switches >>Compact Pressure Switches>>DP Series
DP Series   Orion DP Series Differential Pressure Switches are housed in pressure die cast aluminium powder coated enclosure and are recommended for panel mounting or indoor service based on the type of enclosure opted for.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• 0.1 with 25 bar between working,
• Cast aluminum case,
• Direct or panel mounting,
• Protected adjustable scale,
• Ready to use, easy assembly, easy adjustability,
• Appropriate material selection for different processes,
• 1% accuracy.






 Range 0.1 to 25 bar Differential pressure
 Measurement element Teflon, Neoprene Diaphragm
 Switch Max. 5 A / 250 VAC, 0.2 A/250 VDC
 Differential type Fix
 Protection class IP54
 Body Cast aluminum
 Max.Temperature 80 oC
 Cable input 3/8" Gland
 Repeatability 1% of F.S.
 High pressure connection 1/4" BSP thread
 Low pressure connection 1/4" BSP thread
 Pressure connection material Aluminum, Brass, AISI 316 SS
 Mounting Direct and Panel, Inside and outside area

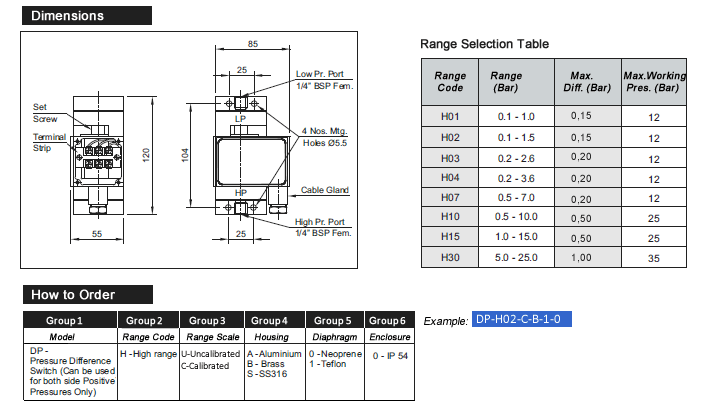

      ORDER CODE



This chapter is for our members use only.

If you are a member click here,
If you are not a member, to register for click here
