H Hydraulic   Orion H Series Pressure Switches have a machined aluminium powder coated enclosure and are recommended for manifold mounting hydraulic applications.
Lockable protective cap to avoid tampering (optional).
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Cast aluminum robust case,
• According to the CNC machines and other hydraulic applications,
• Lightweight,
• For high pressure applications,
• IP65 protection class,
• 1% and 2 % accuracy,
• Easy and safe wiring,
• Lockable set point adjustment protection,
• 3 different mounting types.





 Range 0.2 to 400 bar
 Measurement element Diaphragm; Reinforced plastic, Neoprene, PTFE, Piston; EN8, Stainless steel
 Switch SPDT Snap action switch, Max.5 A / 250 VAC, 0.2 A, 250 VDC
 Differential type Fix
 Protection class IP66
 Body Cast aluminum
 Max.Temperature 80 oC for Metallic diaphragm and 150 oC for piston
 Cable input 1/2" NPT
 Repeatability 1%, 2% of F.S.
 Pressure connection 1/4" BSP thread
 Pressure connection material Aluminum, Brass

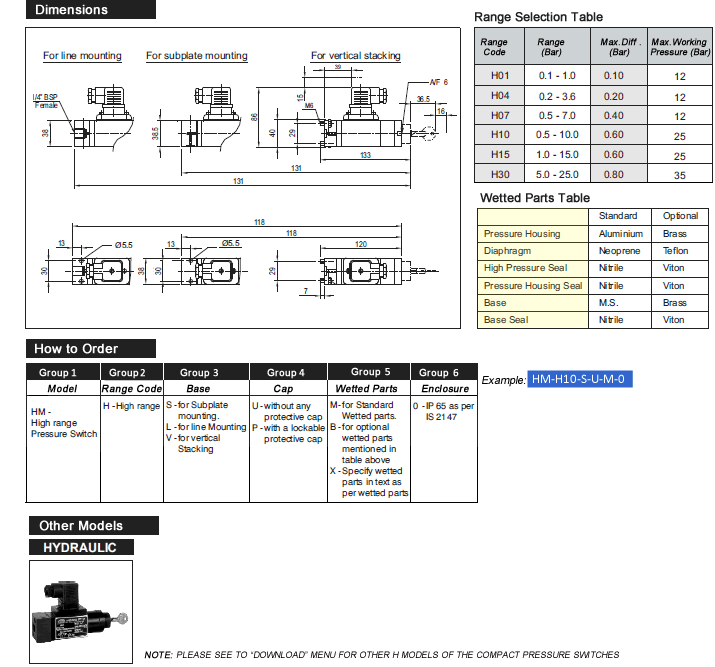

 Mounting Direct or panel mounting, for outside and inside area,
