 Home >>Temperature and Pressure Switches >>Compact Pressure Switches>>D Series
D Series   Orion D Series Pressure Switches are housed in pressure die cast aluminium powder coated enclosure and are recommended for panel mounting or outdoor service based on the type of enclosure opted for.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Ready to use, easy assembly, easy adjustability,
• Cast aluminum case,
• Model DJ with 2SPDT switches,
• Fixed and adjustable types,
• IP65 protection class,
• Appropriate material selection for different processes.







 Range 1 to 600 bar
 Measurement element Piston, Diaphragm; SS, EN8 Steel
 Switch Max. 5 A / 250 VAC, 0.2 A/250 VDC
 Differential type Fix or Adjustable
 Protection class IP54, IP65
 Body Aluminum, Brass
 Max.Temperature 80 oC
 Cable input 11.5 & 14.5 mm Gland
 Repeatability 1%, 2% of F.S.
 Pressure connection 1/4" BSP thread
 Pressure connection material Steel
 Mounting Direct and Panel, Inside and outside area

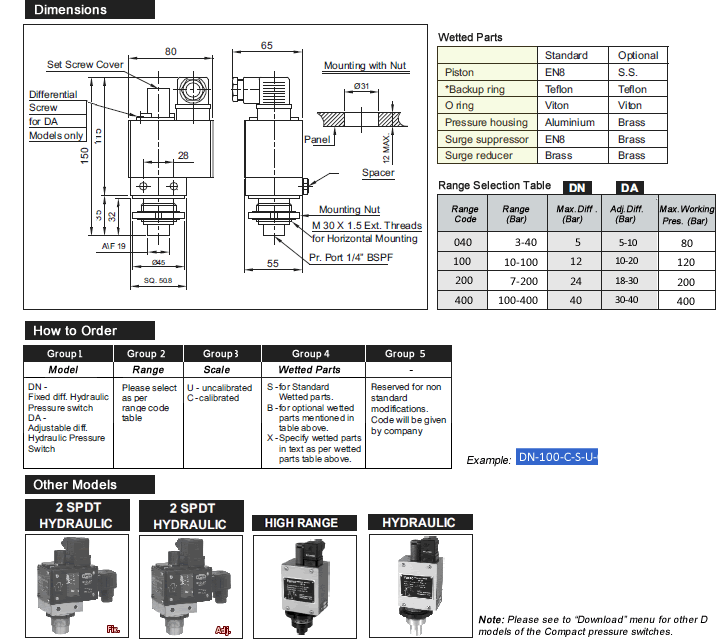

     ORDER CODE



This chapter is for our members use only.

If you are a member click here,
If you are not a member, to register for click here
