FC Series   Orion FC Series switches can be mounted directly or remotely with capillary. These are available in flameproof and weatherproof models with an IP 66 enclosure protection and ranges from 25ºC up to 215ºC (other ranges available on request). These switches have Baseefa, ATEX and IECEx approvals and hence can be used worldwide.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Compact, robust design,
• Flameproof, for IIA,IIB ve IIC gas groups,
• Reliable and sensitive microswitch,
• 1% accuracy,
• IP66 protection class,
• With the 2 mt. AISI 316 SS capillary tube,
• Easy and safe wiring,
• Direct or panel mounting, for outside and inside area,
• 2 years warranty,





 Range 25 to 215 oC
 Measurement element Bulp, gas acting,
 Switch tip 15 A, 250 VAC, SPDT microswitch
 Differential type Fix
 Protection class IP66, ATEX & IECEx approved
 Body Aluminum or gray cast iron and Stainless steel
 Ambient temperature -20 oC to 60 oC
 Repeatability 2% of F.S.
 Cable input 1/2" NPT, 3/4" NPT, M20x1.5
 Bulp-immersion dia and length Brass; dia. 9.5 mm. / 123 mm.
 Process connection 3/8" BSPM, 3/8" NPTM, 1/2" NPTM
 Capillary tube 2 mt. AISI 316 SS
 Mounting Panel or direct; inside and outside area

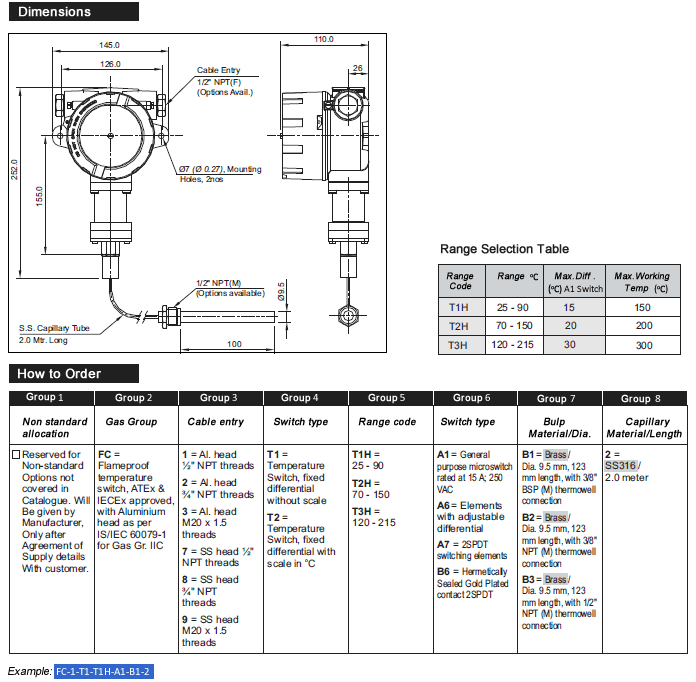

       ORDER CODE
