 Home >>Temperature and Pressure Switches >>Compact Pressure Switches>>MG/ME Series
MG/ME   Orion MG ve ME Series pressure switches are housed in pressed steel powder coated enclosure and are recommended for panel mounting or indoor service. The repeat accuracy is better than +/- 1.5%.
Pressure port is hygenic type.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Suitable to work in difficult conditions,
• For Pharma, Food and Diary industries,
• Reliable and sensitive microswitch,
• Fix. and adjustable,
• Easy and safe wiring,
• Direct or panel mounting, inside area
• 2 years warranty





 Range 0.067 bar to 25 bar
 Measurement element Diaphragm; Neoprene, Teflon, Reinforced plastic, AISI 316SS
 Switch SPDT Snap action switch, Max.5 A / 250 VAC, 0.2 A, 250 VDC
 Differential type Fix or Adjustable
 Protection class IP40
 Body Steel
 Max.Temperature 80 oC, 150 oC for Metal diaphragm
 Cable input M20x1.5 Gland
 Repeatability 1%, 1.5% of F.S.
 Pressure connection 1/4" BSP thread, 1/4" NPT thread, Clamp for sanitary type
 Pressure connection material Aluminum, Brass, AISI 316 SS
 Mounting Direct or panel mounting, inside area

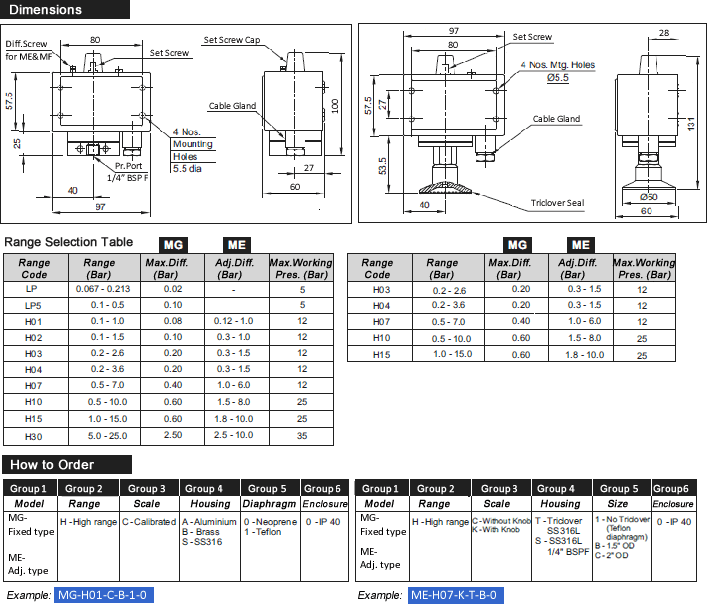

     ORDER CODE


This chapter is for our members use only.

If you are a member click here,
If you are not a member, to register for click here
