EZ Series   Orion EZ Series Pressure Switches are housed in pressed steel powder coated enclosure and are recommended for panel mounting or indoor service.
The repeat accuracy is better than +/-1.5 % FSR.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Ready to use, easy assembly, easy adjustability,
• Robust,
• Steel case,
• PTFE and AISI 316 SS diaphragm,
• Protected scale
• 1.5% repeatability,
• Panel mounting is also available,
• OEM production opportunities.

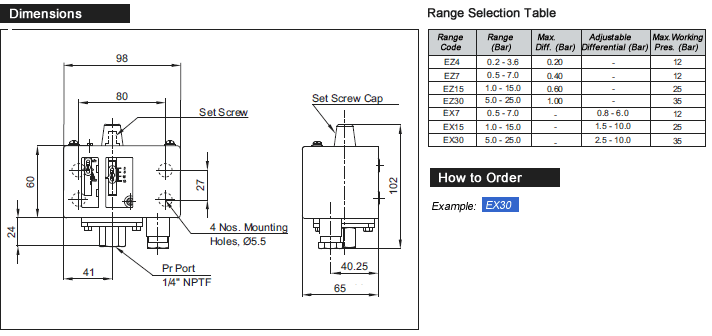

 Range 0.5 to 25 bar
 Measurement element Diaphragm; Teflon
 Switch SPDT Snap action switch A8, Max. 5 A / 250 VAC, 0.2 A, 250 VDC resistive.
 Differential type Fix or Adjustable
 Protection class IP40
 Body Steel
 Max.Temperature 80 oC
 Cable input 3/8" Gland
 Repeatability 1.5% of F.S.
 Pressure connection 1/4" NPT or BSP thread
 Pressure connection material AISI 316 SS
 Mounting Panel or direct, inside area
