MZ Series   Orion MZ Series Pressure Switches have been designed for applications that require cost effective outdoor mounting in aggressive environments. the tough polycarbonate cover,fitted on a stainless steel base, retained by SS screws offers excellent resistance to corrosion, and also allows a view of the internal scale and working of the pressure switch.
  •       SUMMARY
  •      SPECIFICATIONS
  •       ORDER CODE
  •          PRICE
  •     DOWNLOADS
• Suitable to work in difficult conditions, affordable solutions,
• Transparent polycarbonate housing,
• Reliable and sensitive microswitch,
• IP66 protection class,
• Easy and safe wiring,
• Direct or panel mounting, for outside and inside area,
• 2 years warranty





 Range -760 mmHg to 400 bar
 Measurement element Piston, Diaphragm; Neoprene, Teflon, Reinforced plastic, AISI 316SS, Monel
 Switch SPDT Snap action switch, Max.5 A / 250 VAC, 0.2 A, 250 VDC
 Differential type Fix or Adjustable
 Protection class IP66
 Body Transparent polycarbonate housing
 Max.Temperature 80 oC, 150 oC for Metal diaphragm
 Cable input M20x1.5 Gland
 Repeatability 1%, 2% of F.S.
 Pressure connection 1/4" BSP thread, 1/4" NPT thread
 Pressure connection material Aluminum, AISI 316 SS
 Mounting Direct or panel mounting, for outside and inside area,

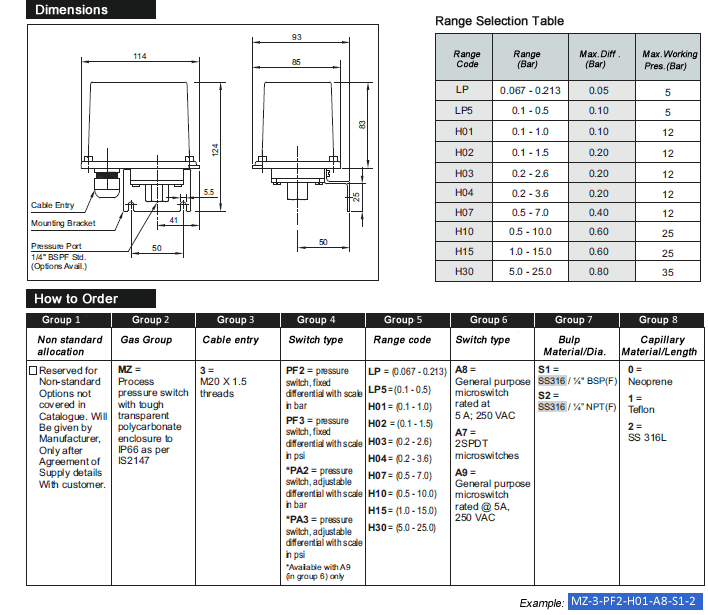

     ORDER CODE
